Create suitability tests

Learn how to create suitability tests in Dose-response analysis documents.

Before you begin

We recommend becoming familiar with the suitability tests concept of PLA 3.0 before beginning. For details, see the Suitability tests topic.

About this task

Created from scratch, Dose-response analysis documents do not contain suitability tests. In this example, we create one assay suitability test and three sample suitability tests.

Note: This task shows how to efficiently work with the document structure in this context. To see how you configure suitability tests in a practical example, see the Use case: Determine total human thyroxine (T4) topic.

Procedure

To create assay suitability tests:

In the Content editor of your Dose-response analysis document, go to Analysis > Suitability tests > Assay suitability tests.
In the Creatable elements pane, double-click F-test (hypothesis).
Result: Your assay document now has one assay suitability test for the lack of fit (default setting).

To create sample suitability tests:

Go to Analysis > Suitability tests > Sample suitability tests.
In the Creatable elements pane, double-click the following elements:
1. Test: Parameter/property point estimate
2. Test: Mean squares (ANOVA)
3. Test: Sum of squares (ANOVA)
Result: Your assay document now has three sample suitability tests.

For each of the suitability tests, configure the margins as required.

The following table shows possible margins for the tests used in this example:


Test type	Upper margin	Lower margin
Parameter/property point estimate	25	10
Mean squares (ANOVA)	64	/
Sum of squares (ANOVA)	256	/

Save the document.

Example

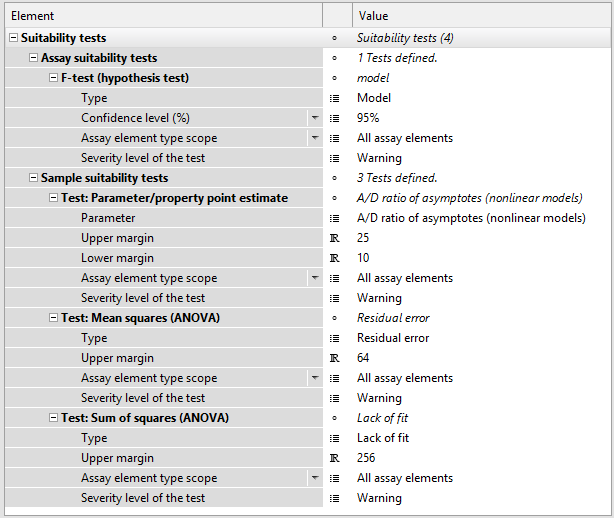

The following image from the 'Effective concentrations (ECx)' sample document shows a possible suitability test setup:

Figure 1. Suitability test setup in a Dose-response analysis document
