Select equivalence margins

Learn how to select equivalence margins in Equivalence margin development documents to define the acceptance criteria for passing and failing assays.

Before you begin

We recommend becoming familiar with the margin development concept of PLA 3.0 before beginning. For details, see the Margin development topic.

Procedure

In the Content editor of your Equivalence margin development document, go to Margin development.
By default, PLA 3.0 offers a variety of property point estimate tests, equivalence tests for single parameters, and tests on ANOVA terms. Remove the tests you do not want to use and set up the remaining according to your requirements.

Important: Removing a test from margin development also removes this test from the test strategy and visualization configuration.
Save the document.

Example

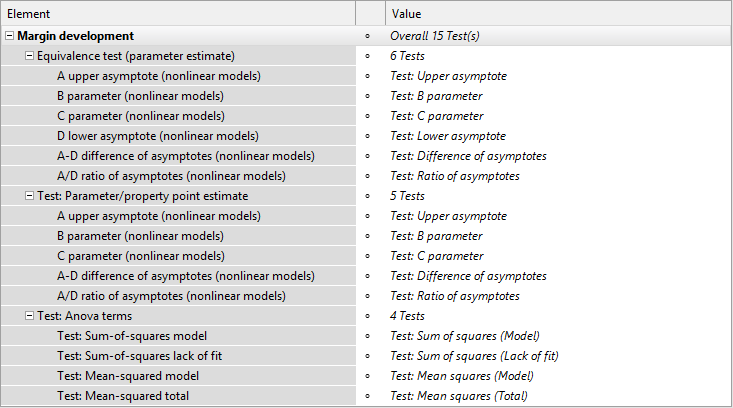

The following image from the 'Equivalence margin development and verification' sample document shows a possible setup with 15 tests:

Figure 1. Sample setup of tests for equivalence margin development
