Content editor
The Content editor is the main editor for all document types and opens by default when you open a document.
Use this editor to navigate the document structure, and to view and maintain document elements and document data. On the action bar, the Content editor is located below the Dashboard.

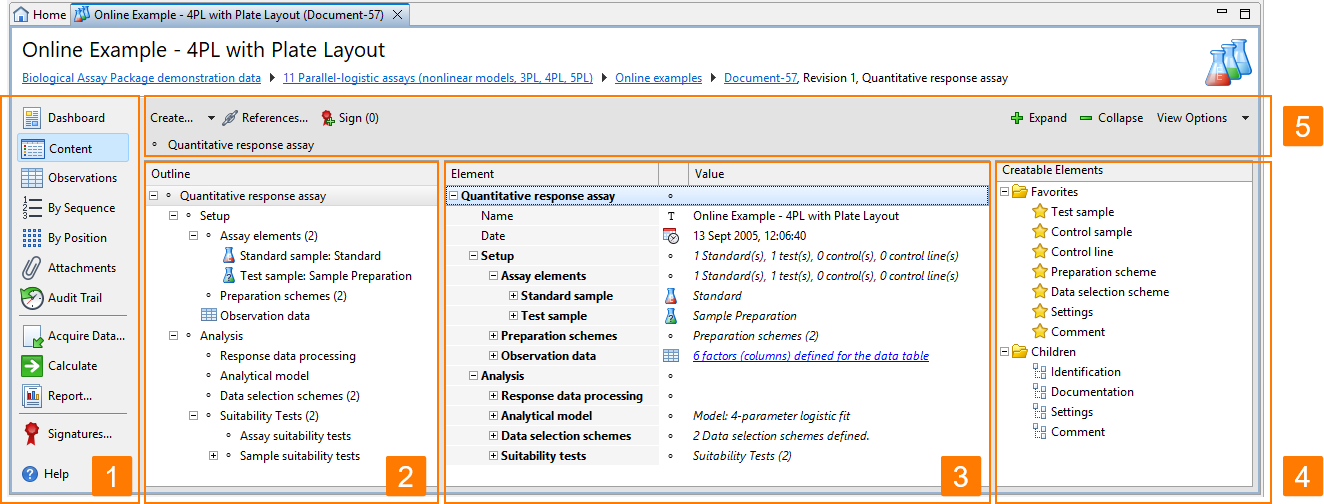

Items
| No. | Item | Description |
|---|---|---|
|
1 |
Toolbar |
The toolbar at the top of the editor provides shortcuts to document element-related actions (left side) and options to customize the display of documents and document data (right side). Select and deselect entries to customize the view as you require. Use the breadcrumbs for quick navigation.
|
|
2 |
Outline pane |
The Outline pane on the left side displays a hierarchical outline of the document structure. Use this pane for navigation and to quickly access document elements. Tip: Use Zoom and
Highlight from the
View options to customize how
elements you select in the Outline
pane are displayed in the Element
pane.
|
|
3 |
Element pane |
The central Element pane shows the document structure (document elements and child elements) and element values. Use this pane to enter values, or edit the values of elements and child elements. Tip: Use plus (+) and minus (-) or
Expand (
 ) and
Collapse ( )
from the toolbar to show or hide elements as you
require. |
|
4 |
Creatable elements pane |
The Creatable elements pane on the right side lists elements you can add to your document structure. This list changes when you select another element in the central or left pane. Double-click an entry in this list to add the element to your current context. Tip: Double-click an entry from the
Favorites list to add a commonly
used element, independent of your current context.
|
Reset user interface.
