Login dialog

Use the Login dialog to select the database you want to work with and sign in. Refresh your information package, manage databases, perform an Installation Qualification, and find information on the PLA 3.0 system.

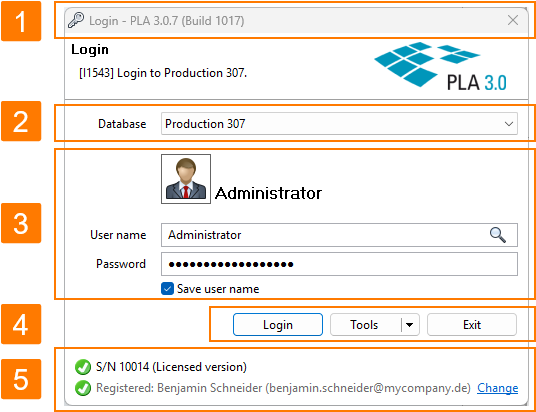

Figure 1. Login dialog of PLA 3.0

Items

The following items are available:


No.	Item	Description
1	Version information	At the top of the dialog, you see the PLA 3.0 version and build number.
2	Database selection	The Database drop-down list shows all available databases. Select the one to which you want to connect for the current session.
3	User information	In the middle of the dialog, you see your current avatar and user name. For details on how to work with the available options, see the Log in to PLA 3.0 topic.
4	Action buttons	Login: Log in to PLA 3.0. Tools: Access a set of extra tools. Exit: Exit and close PLA 3.0.
5	Serial number (S/N)	For licensed versions, you see a green icon and the five-digit serial number under which the PLA 3.0 license is running in your environment. For trial versions, you see a blue icon , a generic 8-digit number, the days remaining in your trial period, and a link for buying the software.
6	Registration information	At the bottom of the dialog, you see the name and e-mail-address of the registered user and a link for changing the information. For details on registration information in PLA 3.0, see the Add registration information topic.

Tools

The following tools are available:


Icon	Tool	Description
	Refresh information package	Manually refresh your information package using one of the following options: Refresh from the internet: Use this option in online environments to download the latest version of your information package. Refresh from a file: Use this option in offline environments. This option requires extra steps. For details, see the Download and refresh information package topic.
	Database management	Lets you manage your database connections. For details, see the Database connection profiles topic.
	Installation Qualification (IQ)	Lets you check the completeness and correctness of the PLA 3.0 installation. For details, see the Installation Qualification topic.
	Help contents	Opens the PLA 3.0 Knowledge Center, where we provide guides and tutorial videos for working with PLA 3.0.
	About PLA 3.0	Displays details on the PLA 3.0 version, memory usage, and third-party applications.
